The monolithic heat pump system is a central hot water system using heat pump technology that is currently popular and widely used because of its superiority such as saving 70% of electricity compared to electric water heaters, high electrical safety, providing hot water with large demand, durable and stable.

With a central hot water system with a return line design - there is always hot water at the tap when needed without waiting time. Only 1 device is needed to provide hot water for the entire building.

Heat pump is a machine consisting of 4 main devices (Compressor, Condenser, Heat exchanger between air and heat carrier, expansion valve) operating according to the principle of thermodynamics with the aim of transporting heat from one environment to another to heat the water stored in the thermal insulation tank (Structure and operating principle are similar to air conditioners).

 Integrated heat pump

Schematic drawing of central clean water and hot water supply

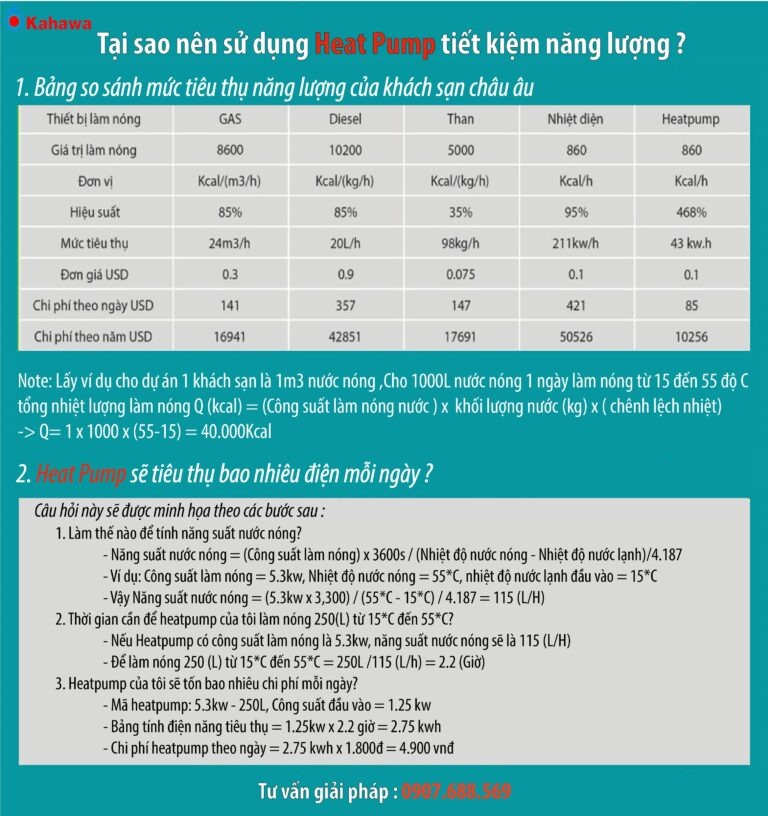

Electricity consumption cost calculation table

The structure of a heat pump has 4 main parts.

– Kahawa heat exchanger (Heat exchange technology with anti-flow conduit pipes has higher heat generation efficiency than the conduit technology in the tank of other brands)

– Kahawa compressors use the world's leading brand compressors such as (Copeland, Panasonic, Hitachi with advanced technology achieving high durability and efficiency in the heat pump industry)

– Kahawa condenser has high density and is coated with anti-corrosion layer to prevent rust and salty and acidic environments.

– Kahawa throttle valve uses 4-way valve for efficiency, durability, safety and defrosting

Kahawa heat pump structure

• Heat pump is imported in its entirety with full import certificate.
• The tank is made of pressure-resistant, antibacterial, heat-retaining enamel-coated steel (the enamel layer ensures heat retention and antibacterial properties).
• 50mm thick polyurethane insulation layer in the middle
• Powder coated steel shell (Safe for equipment and users)
• The hot water tank has an integrated backup resistor that automatically turns on periodically to disinfect the system when the heat exchanger is being maintained or when there is a problem with the condenser, hot water still runs.
• Heat exchanger condenser with safe electrostatic painted steel shell
• Heat exchanger with anti-corrosion and anti-rust coating for salty or acidic environments
• Wilo-Germany brand circulation pump runs smoothly and durably
• Panasonic Japan Compressor
• High heating coefficient high COP heats water quickly
• Production system on modern Japanese technology line ensures EU export standards
• Kahawa Heatpump central water heater is a smart choice for everyone and every family.
• Outstanding Japanese tube-to-tube exchange technology provides high heat exchange efficiency and anti-turbulence compared to other brands.

How heat pump works

Heat pump, also known as "central water heater", is a machine that uses the principle of thermodynamics including 4 cycles:

-Evaporation stage (the heat carrier absorbs the ambient air temperature and heats up, evaporating into a warm gaseous heat carrier, the air loses heat and condenses into water on the evaporator.

-The compressor heats up the heatsink when a compressor force is applied to it.

– Condensing stage (the heat carrier when leaving the compressor is heated up to 100 degrees Celsius and enters the condenser, where it will transfer heat to the water to heat it up to the required temperature of 55 to 65 degrees Celsius and is led to the insulation tank to keep the temperature.

-Expansion valve (after the heat carrier transfers heat to the hot water, it continues to pass through the expansion valve to form a closed loop.

Therefore, heat pump water heaters are the optimal solution to save energy for hot water needs of families or production facilities in hot and humid climates, such as Vietnam.

A heat pump water heater works on the same principle as an air conditioner or a refrigerator. It absorbs heat from the air and converts it into hot water. Therefore, it is also called an air source heat pump. It runs on electricity but is more efficient than a conventional electric water heater.

Video of actual installation of monolithic heat pump (1 block)

High efficiency micro channel heat exchanger

Larger heat exchange area, Better heat transfer efficiency and More durable performance.

The system's Performance Factor can reach 4.25 or even higher.

Do not touch the water in the water tank, so the heat exchanger is not at risk of corrosion, scaling, leakage, etc.

High efficiency compressor

As an internationally renowned brand of dedicated compressor for heat pumps, it is more reliable in system matching and operates more smoothly.

Smart defrost

With intelligent defrosting design, it can revolutionary solve the blockages of heat exchangers in cold winter such as freezing and slow heating, etc., allowing you to spend a more comfortable winter.

Smart and convenient touch control

Smart light display.

WIFI control.

Advantage

• Significantly save on equipment and fuel costs, minimize total power sources, backup power sources/generators, helping owners of motels, hotels, swimming pools, resorts, etc. quickly recover capital.
• Simple system installation and maintenance does not cause changes or affect the structure of the house.
• Absolutely safe, fast heating, large flow supply.
• High performance and energy saving.
• High durability, intelligent automatic operation –· Low operating costs for the system.
• Repair and maintenance are simple, common and economical.

Hot water solutions for hotels

Schematic drawing of hot water supply system for hotel

Video of heat pump installation and operation for Moc Chau hotel

Video of operating the central hot water system for a hotel in Hanoi

Please contact experienced engineers for advice Hotline/ Zalo: 0907 688 569
