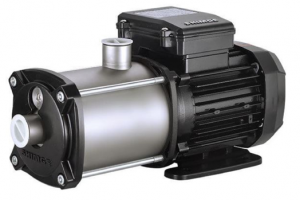

Multi-stage horizontal shaft pump (304 stainless steel casing and impeller) runs durably with low noise

Multi-stage horizontal centrifugal pump with stainless steel impeller includes 2 models: round-shell model - BW and cut-type model BWJ. All parts of the pump in contact with water are made of 304 stainless steel used to pump mildly corrosive solutions. Thanks to high efficiency, energy saving and wide range of applications, the product has achieved high trust when launched on the market. Multi-stage horizontal pump is used to suck from underground tanks and push to the roofs of floors 3, 4, 5 to ensure flow and discharge head (low noise)

Specifications

• Model: BWI3-6
• Flow rate: 1-4.0 m3/h
• Pressure head: 32-53.5 mH2O
• Power: 0.75 kw/ 220v/ 50hz
• Origin: China
• Pump chamber and impeller are made of stainless steel 316L which does not rust, so it can pump highly corrosive liquids.
• Aluminum alloy motor shell with anti-corrosion coating
• Motor cooling by fan blades
• Seal: Ceramic / carbon graphite / NBR
• Mechanical wear ring gasket sealing system
• 2-pole motor 2900 rpm 220V - 380V / 50Hz
• Fixed capacitor and thermal relay combined to protect the motor with machine line 1
• Use pump for pressure boosting, water supply and treatment, supply a large amount of water for irrigation, factories, constructions, projects, use to supply water for buildings, residential areas.
• Genuine warranty 24 months.

Outstanding advantages of Shimge multistage horizontal shaft pump

• Outstanding performance: Shimge pumps are designed with advanced technology to create stable water pressure and flow, meeting all your water supply needs.
• Energy saving: Equipped with energy-saving motors, BW pumps help reduce electricity bills while maintaining high performance.
• Suitable for many applications: Shimge pumps are suitable for water supply for households, irrigation systems, industry and many other applications.
• Reliable durability: Shimge has built its reputation on its commitment to quality and durability. BW pumps are no exception, ensuring stable operation for a long time without the need for regular maintenance.
• Easy installation: The pump's lightweight and intuitive design makes it easy to install and use.

Application of shimge multistage horizontal shaft pump

• Water supply pumps in Industry and Agriculture...
• Clean water treatment systems for castle, villa, hotel projects.
• Industrial filtration systems...
• Water supply pumps for boilers, steam boilers, pumps with maximum heat resistance of 120 degrees Celsius,...
• Fire pumps, fire prevention and fighting...
• Pressure boosting systems, cooling systems...
• Irrigation systems...

Video introducing details of Shimge horizontal multistage pump

To ensure high water flow for the entire building as well as to meet the needs of clean water and central hot water solutions to operate effectively, using Shimge multi-stage horizontal shaft pumps is the most optimal solution distributed by Kahawa Vietnam Co., Ltd. in the Vietnamese market.

Video introducing the central clean water and hot water system for the 7-storey townhouse building

Kahawa Vietnam specializes in distributing genuine household water heaters nationwide. With the goal of bringing the best experience to users, Kahawa Vietnam always strives to improve the quality of service (providing optimal solutions such as low noise, enough pressure flow that can be customized, saving electricity, and safety for equipment)

You can be completely assured when buying products at Kahawa Vietnam:

Genuine imported products, with full documents, the most preferential price on the market.
Warranty policy according to the manufacturer's regulations.
Clear and flexible payment and return policies.
Installation of complete family water heaters from A-Z upon request.
The staff is always ready to receive information and answer enthusiastically 24/7.
